匈牙利最大最專業的能源展——

2024年匈牙利國際可再生能源展

即將拉開大幕

匈牙利國際可再生能源展（RENEO）是匈牙利最大最專業的能源展，已成功舉辦了10屆。展會專注于綠色科技、環保和可再生能源的應用，展出內容包括可再生能源（儲能、電池、氫能、光伏、材料、設備、配套裝備）、節能（節能技術、能源使用量計量系統、節能系統）等，將全面呈現前沿環保解決方案和綠色理念。

01、大族鋰電智能裝備（HAN'S-SLE）

Shenzhen Han's Lithium Battery Smart Equipment Co., Ltd. was established in 2018. It is a holding subsidiary of Han's Laser Technology Industry Group Co., Ltd. The company has more than 4,000 employees, 40% of whom are R&D technical talents. Specializing in the research, development, production and sales of lithium batteries, hydrogen fuel cells, solid-state batteries and other battery energy storage components and related equipment. Han's Lithium Smart Equipment has the comprehensive strength to integrate the entire line of lithium batteries and can provide "turnkey projects" for global customers. At present, the company has three R&D centers in Shenzhen, Wuhan, and Chengdu, five production bases in Shenzhen, Yibin, Jingmen, Changzhou, and Guangzhou, Han's Lithium Smart Equipment adheres to the "customer-centered" business philosophy.

Han's SLE provides electrode making, cell making, testing and assembly equipment for the battery production process. The main products are including rolling, die cutting, slitting, winding/stacking, cell assembling, baking, electrolyte injection, formation and grading, blue tape wrapping, module and PACK assembling series products, and special equipment for the battery manufacturing industry, such as rolling and slitting integrated machine, die cutting and slitting machine, die cutting and winding machine, laser cutting, stacking and hot-pressing machine, laser tab forming and cross-cutting machine.Han’s SLE is fully capable of providing customers with integrated smart factory solutions.

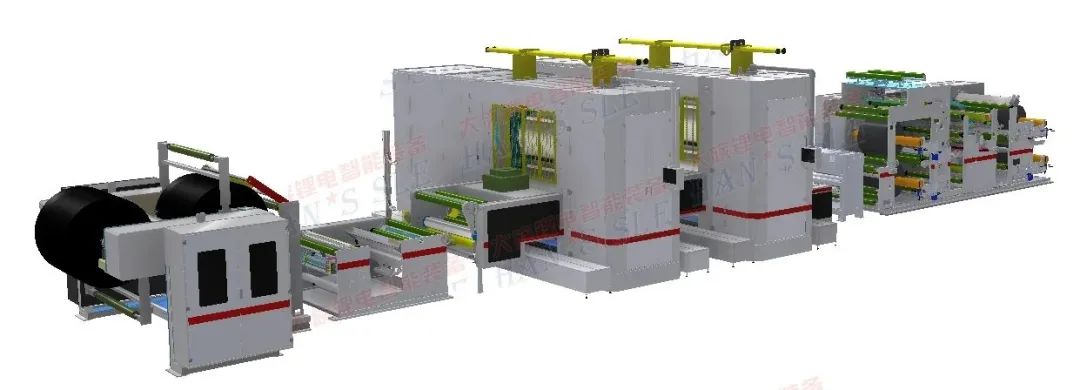

02、輥壓分切一體機 Calendering and Slitting Integrated Machine

該設備用于將涂布后成卷寬幅電池極片展開、經過連續液壓對輥裝置，將極片厚度均勻輥壓，輥壓后的極片經過在線激光測厚設備進行厚度掃描測量，液壓對輥壓力可根據極片設定厚度和掃描測量自動調整，直至極片滿足工藝要求值；達標后再經過分切機，將極片分切成等寬的多條極片，同時配置風刀、毛刷、超聲波除塵等方式，保證極片潔凈度，采用CCD對極片寬度尺寸進行檢測，檢測后的極片尺寸與分切前行進糾偏形成閉環控制，保障分切精度，然后收成整齊卷料。

This equipment unwinds the coated wide electrode rolls, and calenders the electrodes evenly through the continuous hydraulic roller device. Online laser thickness measuring device scans and measures the thickness of the calendered electrode, the hydraulic calendering pressure is automatically adjusted according to the set electrode thickness and the measured thickness until the electrode thickness reaches the required value, and then, the electrode is transferred to the slitting machine and cut into multiple pieces of equal width. Air knifes, hairbrushes and ultrasonic dust removal device are equipped to keep electrodes clean. CCD is used to inspect the width size of electrodes. The inspected electrode size and the deviation correction before slitting can form a closed-loop control to ensure the slitting accuracy. Finally, the slit electrodes are rewound into neat rolls.

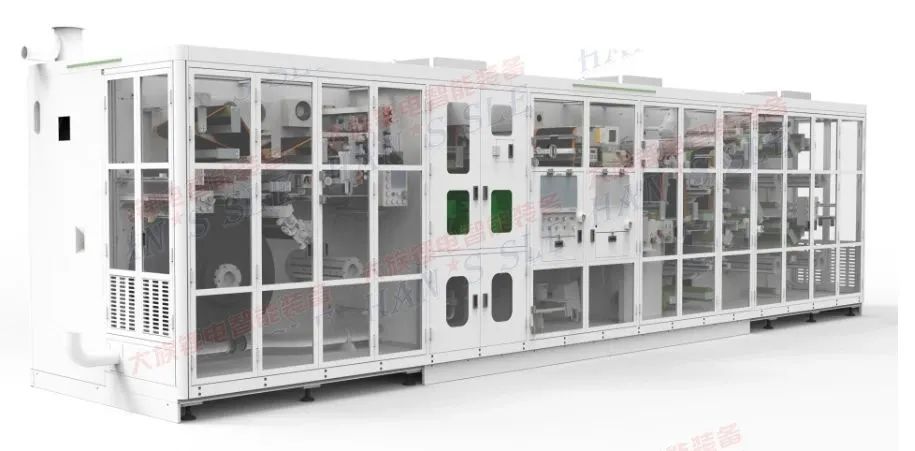

該設備用于動力電池極片極耳成型和分條，采用雙工位自動放卷接帶的方式，全程多段張力控制，三級糾偏控制，保證極片激光切割和分切精度的尺寸，同時配置風刀、毛刷、超聲波除塵等方式，保證極片潔凈度，采用CCD對極片表面缺陷和極耳尺寸進行檢測，檢測后的極片尺寸與模切前和分切前行進糾偏形成閉環控制，配備打標機對NG極片進行貼標，最后經由收卷張力控制收成卷料，自動換卷。

This equipment is used for tab forming and slitting of power batteries. It adopts dual-station automatic roll unwinding and connecting, with multi-section tension control and three-level deviation correction control in the whole process, to ensure the laser cutting and slitting accuracy. Air knifes, hairbrushes and ultrasonic dust removal device are equipped to keep electrodes clean. CCD is used to detect the electrode surface defect and tab size. The detected electrode size and the deviation correction before die-cutting and slitting can form a closed-loop control, and NG electrodes will be labeled by the marker, and the processed electrodes are rewound into rolls, with automatic roll change.

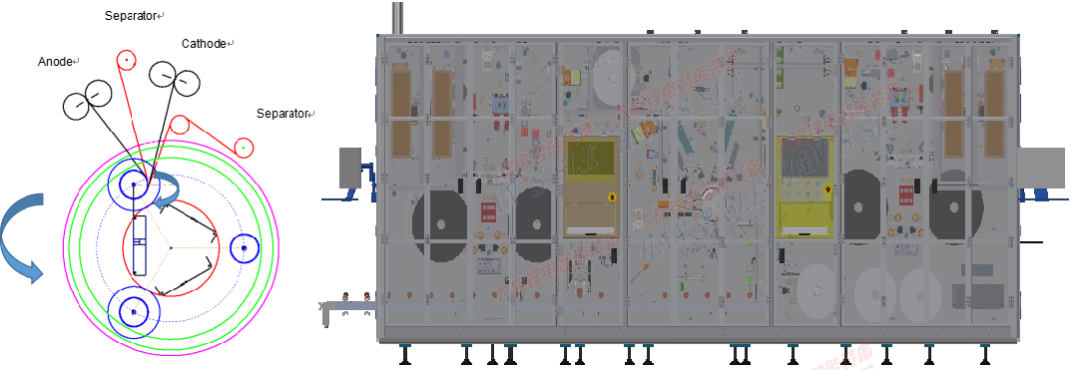

本設備用于圓柱鋰離子電池模切及卷繞工序，為全自動運行設備。工作流程如下：兩卷隔膜主動放卷并糾偏，經過隔膜張力、測長、除靜電、除鐵后引入卷繞部位，正、負極片主動放卷并糾偏后經放卷張力機構、極耳激光模切、除塵、極片貼膠、卷繞張力、測長、行進糾偏、導入機構、裁斷機構、引入卷繞部位；極片與隔膜隔疊并按工藝要求進行卷繞，貼收尾膠帶，反轉擴孔，成品自動下料；可對接帶、單卷、等不良品分類剔除，卷繞合格電芯放入皮帶線，并對其進行燙孔、測圓度、極耳對齊度檢測、外觀檢測，掃碼；極片極耳預折、卷繞極耳折彎、下料極耳拍平等多極耳電芯工序?yàn)榭蛇x模塊，可兼容多種規格型號電芯生產；卷繞過程，穩定性好、噪音低；系統參數集中操控，人機界面采用觸摸屏方式、分級控制，工藝參數可鎖定、存儲和調用。

This fully-automatic operating equipment is used for the die-cutting and winding of cylindrical li-ion batteries. The workflow is as follows: two separator rolls are automatically unwound and corrected, then, are led into the winding part after the separator tension mechanism, length measurement, electrostatic removal and iron removal. The positive and negative electrodes are automatically unwound and corrected, then, are led into the winding part after unwinding tension mechanism, tab laser die-cutting, dust removing, electrode taping, winding tension, length measuring, movement deviation correction, lead-in mechanism and cutting mechanism. Electrodes and separators are stacked alternately, and according to the process requirements, are wound, stuck with end tape, reamed, and unloaded as the finished product. NG products are sorted and removed. OK cells are placed on the conveyor belt, and hole opening, roundness measurement, tab alignment inspection, appearance inspection, and code scanning are performed. Such optional modules as tab pre-folding, winding tab bending and unloading tab flattening are available, compatible with the production of various specifications/models of cells. The winding process has good stability and low noise, the system parameters are centrally controlled, and the HMI adopts touch screen and hierarchical control. Process parameters can be locked, stored and called.

電芯中段裝配段設備，可以覆蓋從卷繞/疊片機下料到電芯烘烤前上料，和二次注液后電芯密封釘焊接和二次氦檢、完成電芯中段各個工藝工序的生產，可以覆蓋市場中各類型電芯工藝。

It is the middle-end assembly equipment of the cell manufacturing process, covering the process from winding/stacking machine unloading to loading before cell baking, and sealing pin welding and second helium test after the second filling, and can cover various types of cell processes in the market.

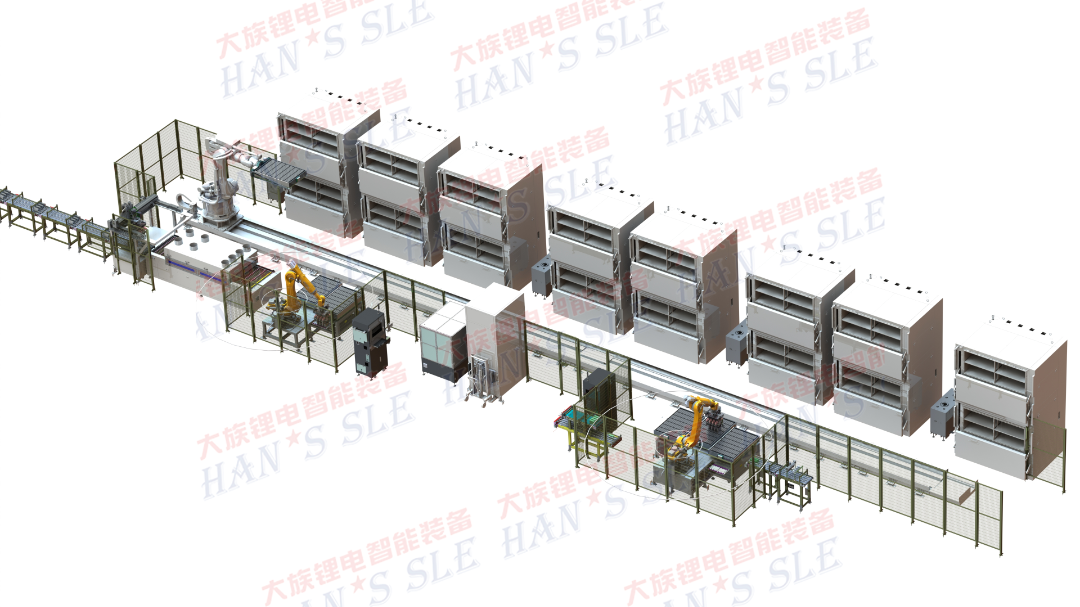

1.功率由1.2W/CM2降低至0.4W/ CM2,整體能耗降低50%,單線年節約電費30萬美元

The power is reduced from 1.2W/CM2 to 0.4W/ CM2, the overall energy consumption is reduced by 50%, and the annual electricity cost of a single line is saved by 300,000 US dollars.

2.雙重過濾控制,Particle防護率＞30W級

Double filter control,Particle protection rate > 30W level

3.設備高柔性兼容性：方形鋁殼、圓柱、軟包、儲能等多品種兼容性產品

Equipment high flexibility compatibility: square aluminum shell, cylinder, soft package, energy storage and other varieties of compatible products.

4.干燥調度系統穩定性及兼容性：全球已交付超500條/套

Drying scheduling system stability and compatibility: the world has delivered more than 500 pieces/sets.

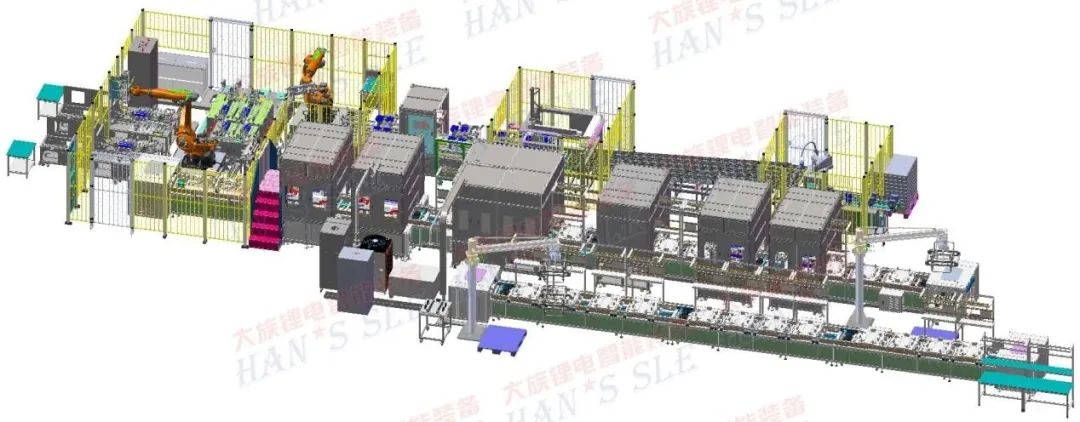

商儲模組PACK整線 Commercial Storage Module PACK Whole Line

1.模組段主要包含：電芯大包裝自動上料，掃碼OCV檢測，自動NG排料補料，等離子清洗，大面貼膠，貼膠檢測，模組堆疊，模組加壓,套鋼帶打PET帶，極柱尋址，極柱激光清洗，連接片安裝，BBS焊接，焊后視覺檢測，EOL測試、DCIR測試；

Module line mainly includes: automatic cell feeding of large packaging, code scanning for OCV detection, automatic NG discharge and feeding, plasma cleaning, large surface tape sticking, glue testing, module stacking, module pressurization, steel belt PET belt, pole addressing, pole laser cleaning, connection piece installation, BBS welding, post-welding visual inspection, EOL test, DCIR test;

2.PACK段主要包含：液冷板上線，液冷板等離子清洗，液冷板涂膠及檢測，模組自動入箱，極柱尋址，跨接鋁排焊接及焊接檢測，自動鎖螺絲，鎳片焊接，自動下線，及相應人工作業和測試等功能；

PACK line mainly includes: liquid cooling plate loading, liquid cooling plate plasma cleaning, liquid cooling plate coating and testing, module into box automatically, pole addressing, aluminum raw welding and welding inspection, automatic locking screw, nickel sheet welding, automatic unloading, and corresponding manual work and testing functions;

3.電芯信息、模組信息和設備生產參數會進行綁定，數據可存儲本地或上傳廠級MES，可快速追述及查詢。

Cell information, module information and equipment production parameters will be bound, and the data can be stored locally or uploaded to factory-level MES, which can be quickly traced and queried.

1.設備主要包含：電芯上料輸送，掃碼OCV檢測，電芯分檔分選，大面貼膠，貼膠檢測，模組堆疊，模組加壓, 套鋼帶打PET帶，極柱尋址，極柱激光清洗，連接片安裝，BBS焊接，焊后視覺檢測，EOL測試、DCIR測試、PACK裝配輸送線、PACK性能測試、吊裝下線。

The equipment mainly includes: Cell loading and conveying, code scanning for OCV detection, cell sorting, large surface tape sticking, glue testing, module stacking, module pressurization, steel belt PET belt, pole addressing, pole laser cleaning, connection piece installation, BBS welding, post-welding visual inspection, EOL test, DCIR test, PACK assembly conveyor line, PACK performance test, lifting unloading.

2.電芯信息、模組信息和設備生產參數會進行綁定，數據可存儲本地或上傳廠級MES，可快速追述及查詢。

Cell information, module information and equipment production parameters will be bound, and the data can be stored locally or uploaded to factory-level MES, which can be quickly traced and queried.

03、歐洲商務考察活動

?行程安排表如下：

?同期精彩活動：

04、報名及聯絡方式
